Ball-Rolling Vibration Switch

Ball-Rolling Vibration Switch

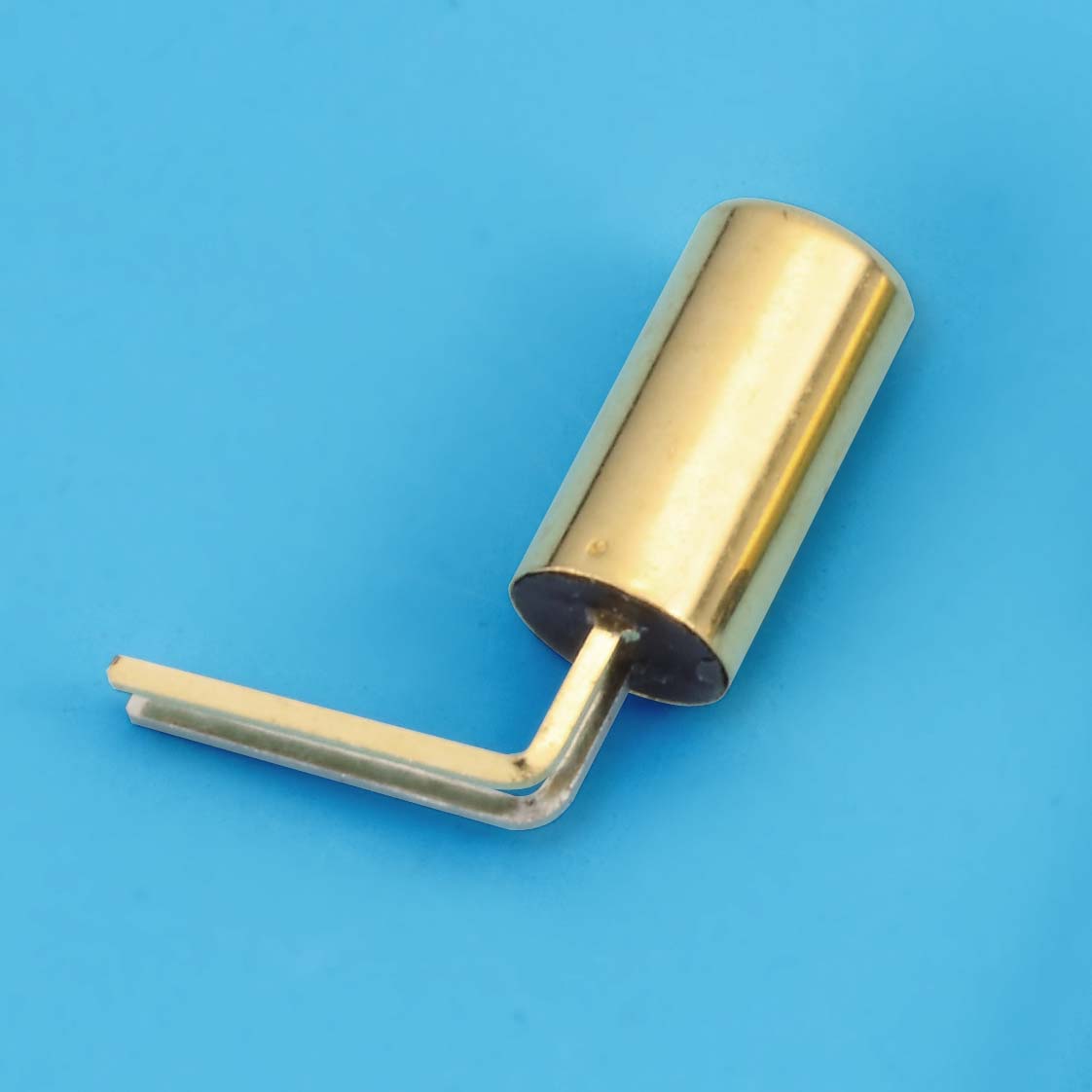

HAT407L Ball-rolling vibration switch

Product ID: HAT407L
HAT407L are vibration switches sensitive to triggering, according to the environmental protection requirement.
Can be activated in small range.Durable.
Can be used in low current and low voltage.
Applications:
Game machines and toys, Security systems, Electrical and electronic products, Personal security alarms, Vibration sensors, Car alarms.
Specifications:
  • Maximun Switch Rating: 24VDC, 6mA.
  • Electrial Life: 100,000 cycles Min.
  • Contact Resistance: 0.5Ω Max. (Measured at 45° tilt )
  • Different Angle: 10° Max.
  • Solder Temperature: Manual soldering 350°C, 3~5 seconds.
  • Operating Temperature: -25°C~ 85°C
